66605

66605

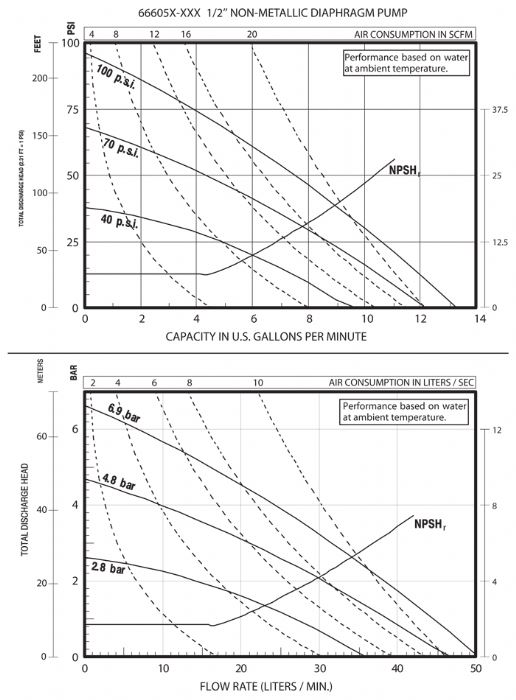

1/2″ CLASSIC STYLE NON-METALLIC COMPACT PERFORMANCE SPECIFICATIONS

66605
  • Ratio 1:1
  • Maximum GPM (LPM): ball check - 13 (49.2)
    duckbill - 10 g.p.m. (37.9 l.p.m.)
  • Displacement Gallons Per Cycle (Liters): ball check - 0.040 (0.15)
    duckbill - 0.032 (0.12)
  • Air Inlet: (Female) 1/4 - 18 P.T.F. - 1
  • Fluid Inlet: 1/2 - 14 N.P.T.F. - 1
  • Fluid Outlet: 1/2 - 14 N.P.T.F. - 1
  • Maximum Operating Pressure PSI (bar): 100 (6.9)
  • Suspended Solids Maximum DIA IN. (mm): ball check - 3/32" dia. (2.4)
    duckbilll - fibers
  • Weight - LBS. (Kg): Polypropylene 7.2 (3.3 kgs)
    Groundable Acetal 8.8 (4.0 kgs)
    Kynar® PVDF 9.5 (4.3 kgs)
  • Maximum Dry Suction Lift: 10 Ft. (3.05) PTFE fitted

OPERATOR’S MANUAL
1/2″ Classic Style Non-Metallic Operator’s Manual

SALES & ENGINEERING DATA SHEETS
1/2″ Classic Style Non-Metallic Pump Specifications

GENERAL INFORMATION MANUAL
General Information Manual

66605 X        - X X X         - 04

Fluid Caps & Manifold Material
3 - Piece Manifold
3 Polypropylene
6 Groundable Acetal
7 Pure Kynar
Single Piece Manifold
J Polypropylene
H Groundable Acetal
K Pure Kynar
Seat Material
0 (Duck Bill)
2 Stainless Steel
3 Polypropylene
4 Kynar PVDF
6 Acetal
Ball Material
1 Neoprene
2 Nitrile
3 Viton
4 PTFE
5 E.P.R.
8 Polyurethane
A Stainless Steel
C Neoprene (*)
D Nitrile (*)
E Santoprene
( * ) Duckbill models
Diaphragm Material
1 Neoprene
2 Nitrile
3 Viton
4 PTFE / Santoprene
5 E.P.R.
8 Polyurethane
9 Hytrel
B Santoprene
Cone Check Flow
04 Top Discharge
66605
