PX01X

PX01X

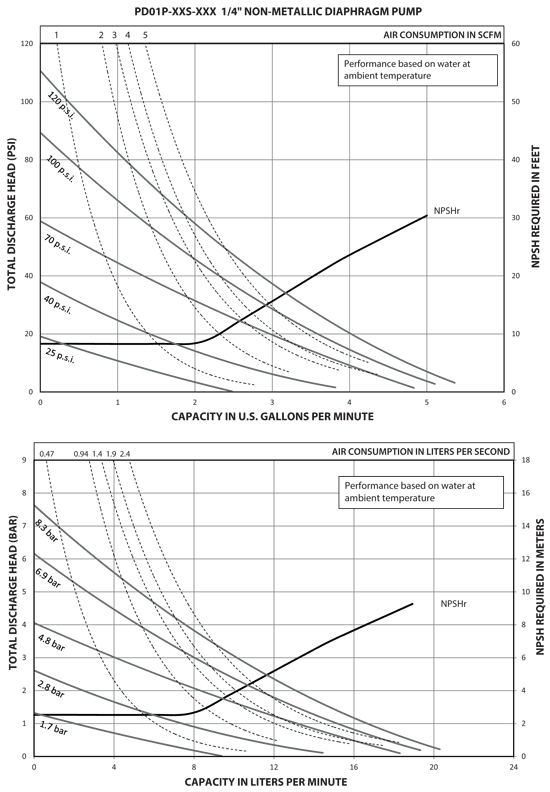

1/4″ NON-METALLIC COMPACT PERFORMANCE SPECIFICATIONS

PX01X
  • Ratio 1:1
  • Air Inlet: Q 1/4 - 18 PTF SAE Short
  • Weight: Polypropylene 2.86 lbs (1.30 kgs)
    PVDF 3.88 lbs (1.76 kgs)
    Acetal 3.52 lbs (1.60 kgs)
  • Maximum Air Inlet Pressure: 125 psig (8.6 bar)
  • Minimum Air Inlet Pressure: 10 psig (0.69 bar)
  • Maximum Outlet Pressure: 125 psig (8.6 bar)
  • Maximum Flow Rate: 5.3 gpm (20 lpm)
  • Maximum Material Inlet Pressure: 10 psig (0.69 bar)
  • Displacement/Cycle @ 125 psig: 0.019 gal/1.172 ltrs
  • Maximum Particle Size: 1/16" dia. (1.6mm)

OPERATOR’S MANUAL
1/4″ Non-Metallic Operator’s Manual

SALES & ENGINEERING DATA SHEETS
1/4″ Non-Metallic Pump Sales & Engineering Data

BROCHURE
Brochure

PX01 X     - X X X     - X X     - X A
Model Series
PD01 Standard Pump
PE01 Electronic Interface
Center Body Material
E Groundable Polypropylene
F Polypropylene with Leak Failure Detection
P Polypropylene
Connection
H Hybrid 1/4" NBT / BSP
Fluid Caps / Manifold Material
D Groundable Acetal
K Kynar PVDF
P Polypropylene
Hardware Material
S Stainless Steel
Seat / Spacer Material
D Acetal
K Kynar PVDF
P Polypropylene
0 Polypropylene (Flex Check Spacer)
1 Acetal (Flex Check Spacer)
2 PVCF (Flex Check Spacer)
Check Material
A Santoprene
C Hytrel
G Nitrile
J Nitrile (flex check only)
K EPR (flex check only)
L Viton (flex check only)
N Neoprene (flex check only)
T PTFE
Diaphragm / O-Ring Material
A Santoprene
C Hytrel
G Nitrile
T PTFE
Revision
A Revision
PX01X
