PX05

PX05

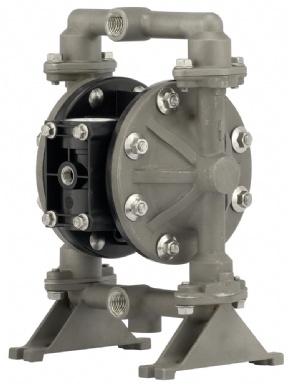

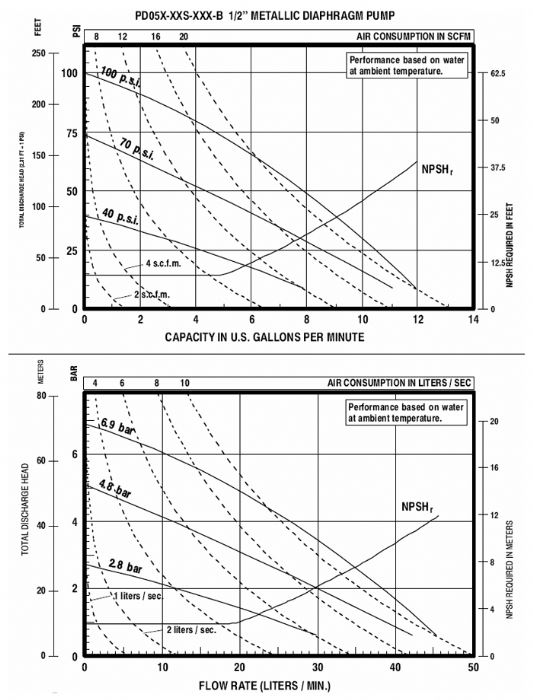

1/2″ METALLIC COMPACT PERFORMANCE SPECIFICATIONS

PX05
  • Ratio 1:1
  • Maximum GPM (LPM): 12.0 (45.4)
  • Displacement Gallons Per Cycle (Liters): 0.039 (0.15)
  • Air Inlet: (Female) 1/4 - 18 N.P.T.F. - 1
    1/4 - 18 P.T.F. SAE short
  • Fluid Inlet: 1/2 - 14 N.P.T.F. - 1
    Rp 1/2 (1/2 - 14 BSP, parallel)
  • Fluid Outlet: 1/2 - 14 N.P.T.F. - 1
    Rp 1/2 (1/2 - 14 BSP, parallel)
  • Maximum Operating Pressure PSI (bar): 100 (6.9)
  • Suspended Solids Maximum DIA IN. (mm): 3/32" dia. (2.4)
  • Weight - LBS. (Kg): PD05A-XAS-XXX-B 10.36 lbs (4.70 kgs)
    PD05A-XSS-XXX-B 16.57 lbs (7.52 kgs)
    PD05R-XAS-XXX-B 8.04 lbs (3.65 kgs)
    PD05R-XSS-XXX-B 14.25 lbs (6.46 kgs)
  • Maximum Dry Suction Lift: 9.1 Ft. (2.8) PTFE fitted

OPERATOR’S MANUAL
1/2″ Metallic Operator’s Manual

SALES & ENGINEERING DATA SHEETS
1/2″ Metallic Pump Specifications

GENERAL INFORMATION MANUAL
General Information Manual

PX05 X      - X X S     - X X X      - B
Electronic Interface
D None
E Available
Center Section Material
A Aluminum
R Polypropylene
Fluid Connection
A 1/2 - 14 N.P.T.F. - 1
B Rp 1/2 (1/2 - 14 BSP parallel)
Fluid Cap & Manifold Material
A Aluminum
S Stainless steel
Hardware Material
S Stainless Steel
Seat Material
F Aluminum
P Polypropylene
S 316 Stainless Steel
Ball Material
A Santoprene
C Hytrel
G Nitrile
S Stainless Steel
T PTFE
U Polyurethane
V Viton
Diaphragm Material
A Santoprene
C Hytrel
G Nitrile
T PTFE / Santoprene
U Polyurethane
V Viton

PX05
