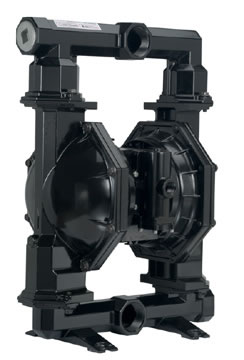

PX-20

PX-20

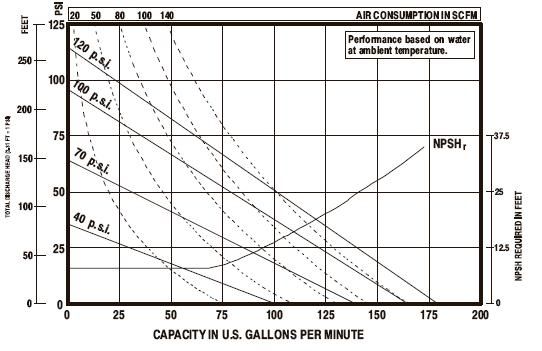

2″ METALLIC EXP PERFORMANCE SPECIFICATIONS

PX-20
  • Ratio 1:1
  • Maximum GPM (LPM): 172 (651)
  • Displacement Gallons Per Cycle (Liters): 1.4 (5.3)
  • Air Inlet: 3/4" - 14 N.P.T.
  • Fluid Inlet: 2" - N.P.T.F.-1
    2" - BSP
    2" - A.N.S.I. / DIN Flange *SS only
  • Fluid Outlet: 2" - N.P.T.F.-1
    2" - BSP
    2" - A.N.S.I. / DIN Flange *SS only
  • Maximum Operating Pressure PSI (bar): 120 (8.3)
  • Suspended Solids Maximum DIA IN. (mm): 1/4" (6.4)
  • Weight - LBS. (Kg): 91.4 (41.5) Aluminum, Alum Center Body
    147.4 (66.9) Cast Iron, Alum Center Body
    165 (74.8) Cast Iron, Poly Center Body
    149.8 (68) Stainless (threaded) Alum Center Body
    154 (69.9) Stainless (threaded) Poly Center Body
    178.7 (81.1) Stainless (threaded) SS Center Body
    146 (66.2) Stainless (flange) Poly Center Body
    162.2 (73.6) Stainless (flange) Alum Center Body
    191.1 (86.7) Stainless (flange) SS Center Body
    154 (69.9) Hastelloy (threaded) Poly Center Body
    155 (70.3) Hastelloy (threaded) Alum Center Body
    183.9 (83.4) Hastelloy (threaded) SS Center Body
    146 (66.2) Hastelloy (flange) Poly Center Body
    162.2 (73.6) Hastelloy (flange) Alum Center Body
    191.1 (86.7) Hastelloy (flange) SS Center Body
  • Maximum Dry Suction Lift: 14 Ft. (4.2) Elastomer fitted

OPERATION & MAINTENANCE MANUALS
PD20A & PD20S O,I & M Manual
PD20R O,I & M Manual

SALES & ENGINEERING DATA SHEETS
PD20A & PD20S Data Sheet
PD20R Data Sheet

CHEMICAL COMPATIBILITY GUIDE
CHEMICAL COMPATIBILITY

EXP DIAPHRAGM PUMP SPECIFICATION
EXP DIAPHRAGM PUMP SPEC.

PX20 X     - X X X     - X X X     - B
Model Series
PD20 Standard Pump
PE20 Electronic Interface Accessible Pump
Center Section
A Aluminum
R Polypropylene w/SS Air Caps
S Stainless Steel
Y Polypropylene w/CI Air Caps
Connection
A NPTF Thread
B BSP Thread
F 2" A.N.S.I. / DIN Flange (Center)*
Wetted Parts
A Aluminum¹
C Cast Iron
H Hastelloy
S Stainless Steel
Hardware
P Plated Steel
S Stainless Steel
Seat Material
A Santoprene
C Hytrel
E Carbon Steel
F Aluminum
G Nitrile
H 440 Stainless Steel (Hard)
K PVDF
L Hastelloy-C
S 316 Stainless Steel
Ball Material
A Santoprene
C Hytrel
G Nitrile
S 316 Stainless Steel
T PTFE
V Viton
Diaphragm Material
A Santoprene
C Hytrel
G Nitrile
M Medical grade Santoprene
T PTFE/
Santoprene
V Viton
Specialty Code
B
PX-20
