66615

66615

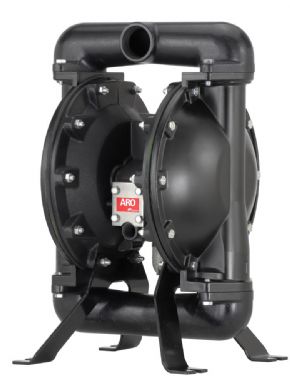

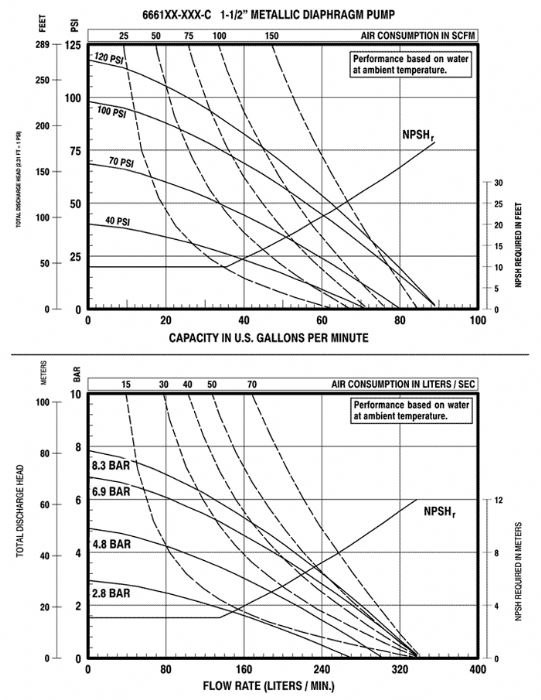

1-1/2″ METALLIC PRO PERFORMANCE SPECIFICATIONS

66615
  • Ratio 1:1
  • Maximum GPM (LPM): 90 (340.7)
  • Displacement Gallons Per Cycle (Liters): 0.64 (2.42)
  • Air Inlet: (Female) 1/2" - 14 N.P.T.F. - 1
  • Fluid Inlet: 1-1/2" - N.P.T.F.
    1-1/2" - BSP parallel)
  • Fluid Outlet: 1-1/2" - N.P.T.F.
    1-1/2" - BSP parallel)
  • Maximum Operating Pressure PSI (bar): 120 (8.3)
  • Suspended Solids Maximum DIA IN. (mm): 1/4" (6.4)
  • Weight - LBS. (Kg): 666150-X-C (aluminum) 51.5 (23.4)
    666151-X-C (stainless steel)84.5 (38.3)
    666152-X-C (cast iron) 79.5 (36.1)

    Note: Add 23-lbs (10.4-kg) for cast iron air motor section
  • Maximum Dry Suction Lift: 19 Ft. (5.8)

OPERATOR’S MANUAL
1-1/2″ Metallic Operator’s Manual

SALES & ENGINEERING DATA SHEETS
1-1/2″ Metallic Pump Specifications

GENERAL INFORMATION MANUAL
General Information Manual

6661 X X          - X X X        - C

Center Body Material, Threads
5 Aluminum, N.P.T.F.
6 Cast Iron, N.P.T.F.
7 Aluminum, BSP
8 Cast Iron, BSP
Fluid Cap / Manifold Material, Hardware
(Steel Hardware)
0 Aluminum
1 Stainless Steel
2 Cast Iron
(Stainless Steel Hardware)
A Aluminum
B Stainless Steel
C Cast Iron
Seat Material
1 Aluminum
2 316 Stainless Steel
3 Polypropylene
4 Kynar PVDF
5 Carbon Steel
8 440 Stainless Steel
Ball Material
1 Neoprene
2 Nitrile
3 Viton
4 PTFE
5 E.P.R.
6 Acetal
8 Polyurethane
A Stainless Steel
C Hytrel
E Santoprene
Diaphragm Material
1 Neoprene
2 Nitrile
3 Viton
4 PTFE / Santoprene
5 E.P.R.
9 Hytrel
B Santoprene
