AF0402MXXXXXX

AF0402MXXXXXX

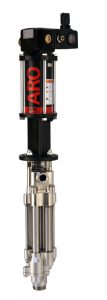

ARO AF0402MXXXXXX

AF0402MXXXXXX
BROCHURE
pdf iconAF0402_4B Product Page

DATA SHEET
pdf iconAFX 4 Ball Manual AF0402MXXXXXX
ModelPlunger MaterialUpper PackingsLower PackingsLower Pump ModelPump Service KitBall Valve RegulatorLower Pump Model Material
AF0402M11HF48 17-4 Stainless Steel Ceramic Coated UHMW-PE/Leather Staggered UHMW-PE 67200-F4B 637317-F4B No 300 Series/ CF8M Stainless Steel
AF0402M11RS48 17-4 Stainless Steel Ceramic Coated PTFE/UHMW-PE Staggered Virgin PTFE 67200-R4B 637317-R4B No 300 Series/ CF8M Stainless Steel
AF0402M11KS48 17-4 Stainless Steel Ceramic Coated Glass Filled PTFE Virgin PTFE 67200-74B 637317-74B No 300 Series/ CF8M Stainless Steel
AF0402M11FF48 17-4 Stainless Steel Ceramic Coated UHMW-PE UHMW-PE 67200-C4B 637317-C4B No 300 Series/ CF8M Stainless Steel
AF0402M11HF48-1 17-4 Stainless Steel Ceramic Coated UHMW-PE/Leather Staggered UHMW-PE 67200-F4B 637317-F4B Yes 300 Series/ CF8M Stainless Steel
AF0402M11RS48-1 17-4 Stainless Steel Ceramic Coated PTFE/UHMW-PE Staggered Virgin PTFE 67200-R4B 637317-R4B Yes 300 Series/ CF8M Stainless Steel
AF0402M11KS48-1 17-4 Stainless Steel Ceramic Coated Glass Filled PTFE Virgin PTFE 67200-74B 637317-74B Yes 300 Series/ CF8M Stainless Steel
AF0402M11FF48-1 17-4 Stainless Steel Ceramic Coated UHMW-PE UHMW-PE 67200-C4B 637317-C4B Yes 300 Series/ CF8M Stainless Steel
